如何配置 Tooltip (文字提示) 自动换行?
问题描述

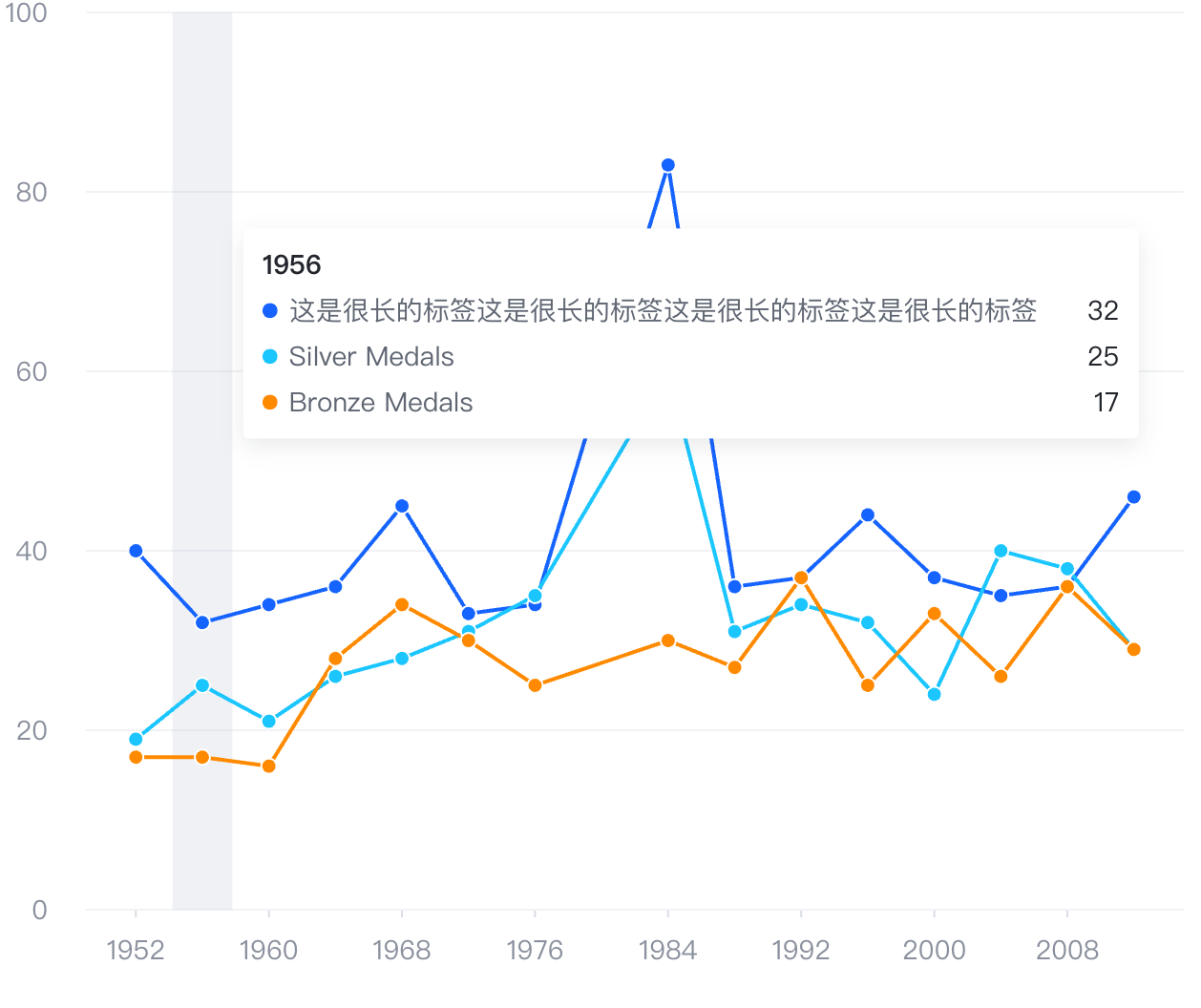

类似 (https://visactor.io/vchart/demo/line-chart/null-value-line)这样的图表,tooltip的内容太长了,希望有换行效果

解决方案
不同图表库的解决方案不一样,根据你给的 demo,在 VChart 中只需要配置最大宽度和多行支持即可。
tooltip: {
style: {
keyLabel: {
maxWidth: 100,
multiLine: true
},
titleLabel: {
maxWidth: 20
}
}
}
代码示例
const spec = {
type: 'line',
data: {
values: [
{ type: 'Nail polish', country: '这是一段很长的标题这是一段很长的标题这是一段很长的标题', value: 4229 },
{ type: 'Nail polish', country: 'EU', value: 4376 },
{ type: 'Nail polish', country: 'China', value: 3054 },
{ type: 'Nail polish', country: 'USA', value: 12814 },
{ type: 'Eyebrow pencil', country: '这是一段很长的标题这是一段很长的标题这是一段很长的标题', value: 3932 },
{ type: 'Eyebrow pencil', country: 'EU', value: 3987 },
{ type: 'Eyebrow pencil', country: 'China', value: 5067 },
{ type: 'Eyebrow pencil', country: 'USA', value: 13012 },
{ type: 'Rouge', country: '这是一段很长的标题这是一段很长的标题这是一段很长的标题', value: 5221 },
{ type: 'Rouge', country: 'EU', value: 3574 },
{ type: 'Rouge', country: 'China', value: 7004 },
{ type: 'Rouge', country: 'USA', value: 11624 },
{ type: 'Lipstick', country: '这是一段 很长的标题这是一段很长的标题这是一段很长的标题', value: 9256 },
{ type: 'Lipstick', country: 'EU', value: 4376 },
{ type: 'Lipstick', country: 'China', value: 9054 },
{ type: 'Lipstick', country: 'USA', value: 8814 },
{ type: 'Eyeshadows', country: '这是一段很长的标题这是一段很长的标题这是一段很长的标题', value: 3308 },
{ type: 'Eyeshadows', country: 'EU', value: 4572 },
{ type: 'Eyeshadows', country: 'China', value: 12043 },
{ type: 'Eyeshadows', country: 'USA', value: 12998 },
{ type: 'Eyeliner', country: '这是一段很长的标题这是一段很长的标题这是一段很长的标题', value: 5432 },
{ type: 'Eyeliner', country: 'EU', value: 3417 },
{ type: 'Eyeliner', country: 'China', value: 15067 },
{ type: 'Eyeliner', country: 'USA', value: 12321 },
{ type: 'Foundation', country: '这是一段很长的标题这是一段很长的标题这是一段很长的标题', value: 13701 },
{ type: 'Foundation', country: 'EU', value: 5231 },
{ type: 'Foundation', country: 'China', value: 10119 },
{ type: 'Foundation', country: 'USA', value: 10342 },
{ type: 'Lip gloss', country: '这是一段很长的标题这是一段很长的标题这是一段很长的标题', value: 4008 },
{ type: 'Lip gloss', country: 'EU', value: 4572 },
{ type: 'Lip gloss', country: 'China', value: 12043 },
{ type: 'Lip gloss', country: 'USA', value: 22998 },
{ type: 'Mascara', country: '这是一段很长的标题这是一段很长的标题这是一段很长的标题', value: 18712 },
{ type: 'Mascara', country: 'EU', value: 6134 },
{ type: 'Mascara', country: 'China', value: 10419 },
{ type: 'Mascara', country: 'USA', value: 11261 }
]
},
title: {
visible: true,
text: '100% stacked line chart of cosmetic products sales'
},
percent: true,
xField: 'type',
yField: 'value',
seriesField: 'country',
legends: [{ visible: true, position: 'middle', orient: 'bottom' }],
axes: [
{
orient: 'left',
label: {
formatMethod(val) {
return `${(val * 100).toFixed(2)}%`;
}
}
}
],
tooltip: {
style: {
keyLabel: {
maxWidth: 100,
multiLine: true
},
titleLabel: {
maxWidth: 20
}
}
}
};

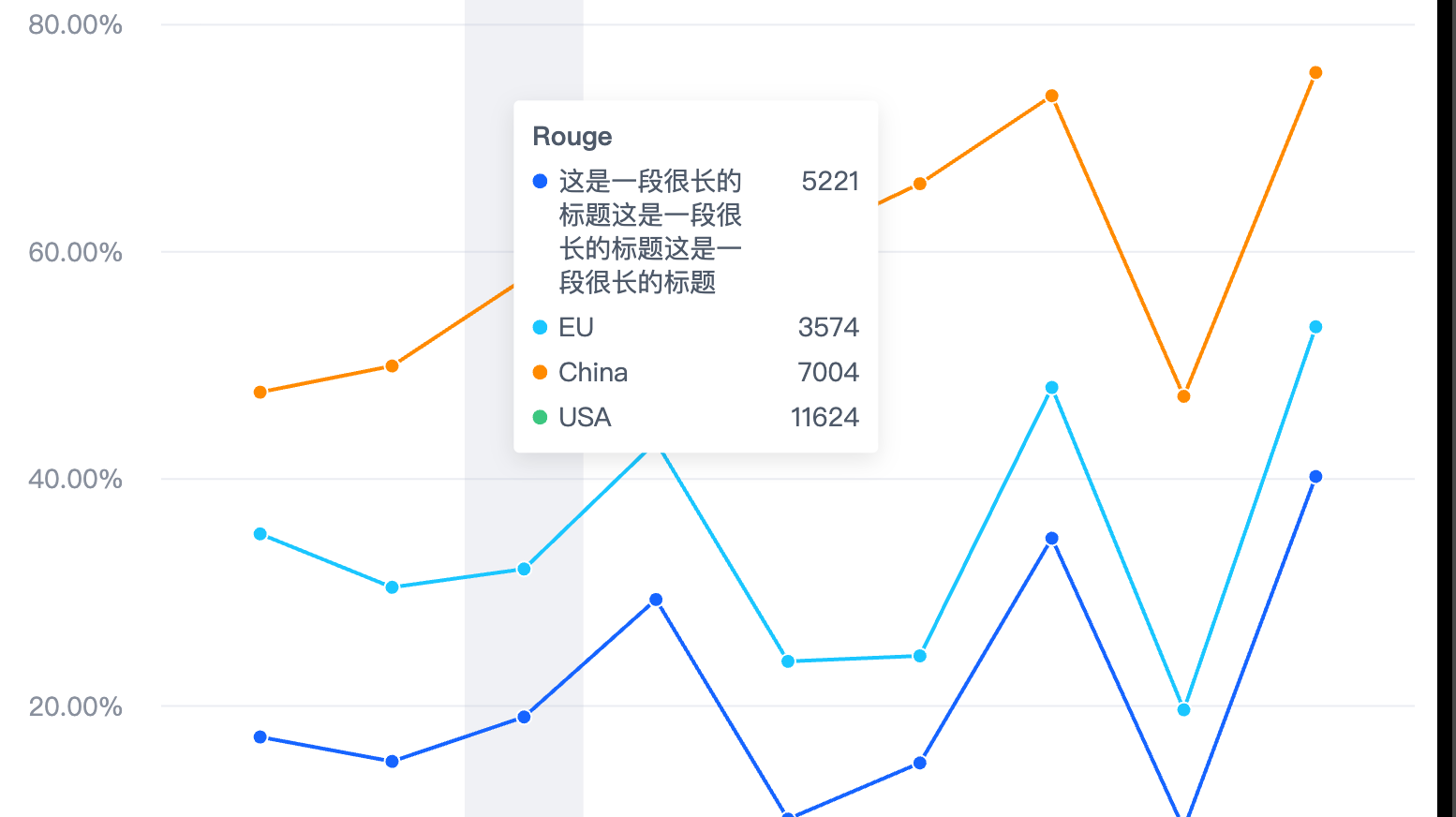

结果展示
在线效果参考:https://codesandbox.io/s/tooltip-multiline-j9ngvp

相关文档
Tooltip 教程:https://visactor.io/vchart/guide/tutorial_docs/Chart_Concepts/Tooltip 相关 api:https://visactor.io/vchart/option/barChart#tooltip.visible github:https://github.com/VisActor/VChart
